Model LV-200 BeamEdition EN · 04 / 2026 · V1Doc. No. LV200-EN-01

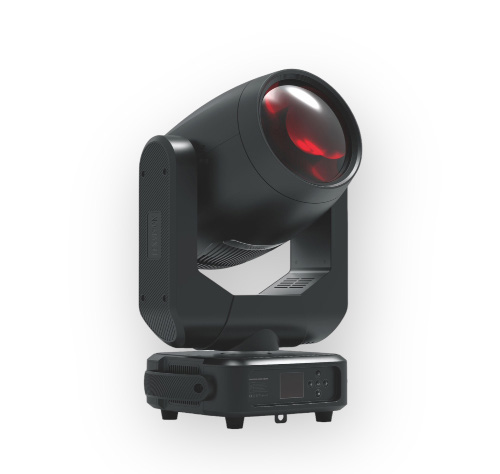

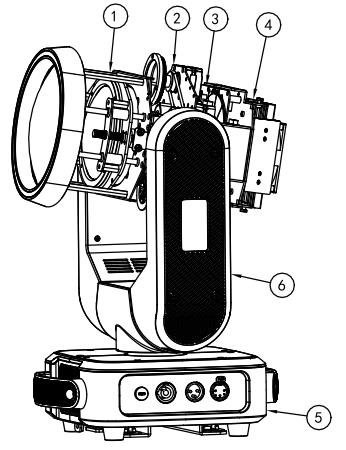

Beam Moving Head

LV-200 Beam

200 W beam moving head with color wheel, fixed gobo wheel, prism, rainbow & diffusion effect

Operating manual. Please read in full before first use and keep for future reference.

Light source

200 W LED

Pan / Tilt

540° / 270°16-bit

DMX channels

14

IP rating

IP20Indoor

Foreword

00Welcome

Thank you for choosing the Lexvision LV-200 Beam — a 200 W beam moving head with color wheel, fixed gobo wheel, prism and rainbow/diffusion effect.

This document covers installation, operation, maintenance and troubleshooting. Read the manual in full — especially the Safety Information chapter — before first use, and keep it with the unit.

0.1Intended Use

The LV-200 Beam is built exclusively for professional indoor use (IP20). Permitted ambient temperature: −20 °C to 40 °C.

0.2Scope of Delivery

1 × Lexvision LV-200 Beam
1 × Power cable · 1 × Signal cable
2 × Folding hanging brackets
1 × Spare fuse
1 × Operating manual

Table of Contents

—Overview

01Safety Information04
02Technical Data05
03Power & DMX Connection06
04Control Panel & Menu07
05DMX Channel Chart (14 CH, complete)08
5.1Color Wheel — Channel 0810
5.2Gobo Wheel — Channel 0911
06Maintenance & Troubleshooting12
—CE Compliance Notice13

Chapter 01

01Safety Information

Read this chapter fully before first use. This product is intended for professional use only.

Danger — Electric ShockElectrical connection only by qualified personnel. Every unit must be properly grounded. Always disconnect from mains before opening the housing, replacing the fuse, or servicing lamps.

Check for transport damage immediately upon receipt; do not operate a damaged unit.
Indoor use only (IP20). Avoid damp, overheated or very dusty environments.
Ambient temperature must not exceed 40 °C.

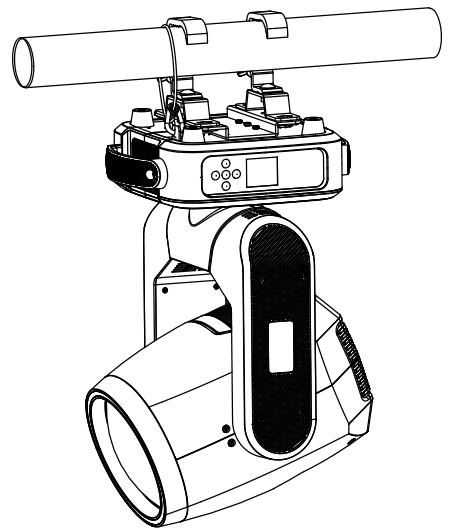

The mounting point must safely bear the weight of the fixture; the fixture must additionally be secured with a suitable safety cable of sufficient load rating in accordance with local regulations and laws.
Minimum distance to combustible material: 0.5 m. Keep ventilation openings clear by at least 0.1 m.
Surface temperature can reach 60 °C during operation — do not touch while running; allow at least 15 minutes to cool before packing.
Do not look directly into the light source. Replace damaged protective screens/lenses immediately.
Maintain a minimum projection distance of 10 m.
Use only the specified fuse (Ø5×20 mm, 5 A, 250 V, slow-blow).

Chapter 02

02Technical Data

Light Source & Optics

LED source	1 × 200 W high-performance LED chip (white)
Color temperature	10,000 K
LED lifespan	approx. 50,000 h
Beam angle	1.8°, Ø152 mm glass lens
Color wheel	1 wheel, 10 colors + white, with split-color effect
Gobo wheel	1 fixed pattern wheel, 14 patterns + white
Prism	1 × 24-facet (dual prism optional), rotating
Diffusion / Rainbow	11-group soft diffusion + 1 rainbow effect plate
Dimmer / Strobe	0–100 % · electronic, 0–25 flashes/s

Movement & Control

Pan	0 – 540°, 16-bit
Tilt	0 – 270°, 16-bit
Protocol	DMX-512 / RDM (bidirectional)
DMX channels	14 CH
Operating modes	DMX · Auto · Master/Slave · Sound-active
Display	2.0" TFT LCD, EN/CN menu, 4 function buttons

Electrical & Housing

Input voltage	AC 100 – 250 V, 50/60 Hz
Power draw	350 W (350 W power supply)
Fuse	Ø5×20 mm, 5 A, 250 V, slow-blow
IP rating	IP20 — indoor
Connectors	Seetronic power IN, 3-pin XLR DMX IN/OUT
Dimensions	280 × 302 × 497 mm
Weight	12 kg

Chapter 03

03Power & DMX Connection

3.1Power Connection & Fuse

Input voltage	AC 100 – 250 V, 50/60 Hz
Fuse	Ø5×20 mm, 5 A, 250 V, slow-blow (glass tube)
Connector	Seetronic connector, 3-core cable

Ensure the ground cable is securely connected. To replace the fuse: turn the cap counter-clockwise, swap the fuse, and tighten clockwise — always disconnect from mains first.

3.2DMX512 Connection

3-pin XLR connector: pin 1 ground (GND), pin 2 DATA−, pin 3 DATA+. Connect fixtures only in series.

Fit a 120 Ω termination resistor at the last fixture in the chain.
If distances exceed 60 m between console/fixtures, a signal amplifier is required.
One input and one output per connector only — never two signals at once.

Chapter 04

04Control Panel & Menu

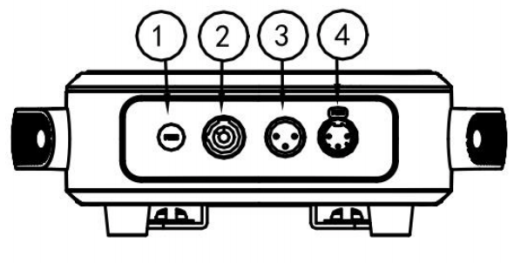

4.1Connector Panel

Fuse holder	Access to mains fuse
Power IN	Seetronic power input (blue)
Signal IN / OUT	3-pin XLR, DMX in/out

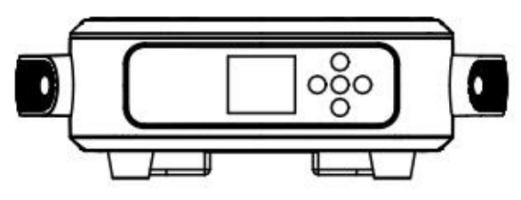

4.2Button Functions (2.0" TFT display)

Button	Function
Left	Enter menu / go back one step
Up	Menu up / increase value
Down	Menu down / decrease value
Right	Continue navigating menu downward
Confirm	Open menu item / save change

Chapter 05

05DMX Channel Chart (1/2 · Channel 01–08)

CH	Function	Range / Description
01	X axis (pan)	0 – 255 · 0 – 540°
02	X axis fine tuning	0 – 255
03	Y axis (tilt)	0 – 255 · 0 – 270°
04	Y axis fine tuning	0 – 255
05	X/Y speed	Fast → slow
06	Dimmer	0 – 255 · 0 – 100 %
07	Strobe	0–3 Linear (open)
		4–99 Simultaneous stroboscopic
		100–149 Pulse stroboscopic
		150–199 Sharp flash
		200–249 Random stroboscopic
		250–255 Fast-speed dimmer flash
08	Color wheel see chapter 5.1	0–7 White
		8–13 Color 1 — Red
		14–19 Color 2 — Green
		20–25 Color 3 — Blue
		26–31 Color 4 — Yellow
		32–37 Color 5 — Magenta
		38–43 Color 6 — Light green
		44–49 Color 7 — Light blue
		50–55 Color 8 — Orange
		56–61 Color 9 — Pink
		62–67 Color 10 — CTO (warm-white filter)
		68–73 White + Red
		74–79 Red + Green
		80–85 Green + Blue
		86–91 Blue + Yellow
		92–97 Yellow + Magenta
		98–103 Magenta + Light green
		104–109 Light green + Light blue
		110–115 Light blue + Orange
		116–121 Orange + Pink
		122–127 Pink + CTO
		128–189 Clockwise, fast → slow
		190–193 Stop
		194–255 Counter-clockwise, slow → fast

Continued on page 9

05DMX Channel Chart (2/2 · Channel 09–14)

Continued from page 8

CH	Function	Range / Description
09	Gobo wheel see chapter 5.2	0–7 White (open)
		8–10 Gobo 1
		11–13 Gobo 2
		14–16 Gobo 3
		17–19 Gobo 4
		20–22 Gobo 5
		23–25 Gobo 6
		26–28 Gobo 7
		29–31 Gobo 8
		32–34 Gobo 9
		35–37 Gobo 10
		38–40 Gobo 11
		41–43 Gobo 12
		44–46 Gobo 13
		47–49 Gobo 14
		50–59 Gobo 1 shake, slow → fast
		60–69 Gobo 2 shake, slow → fast
		70–79 Gobo 3 shake, slow → fast
		80–89 Gobo 4 shake, slow → fast
		90–99 Gobo 5 shake, slow → fast
		100–109 Gobo 6 shake, slow → fast
		110–119 Gobo 7 shake, slow → fast
		120–129 Gobo 8 shake, slow → fast
		130–139 Gobo 9 shake, slow → fast
		140–149 Gobo 10 shake, slow → fast
		150–159 Gobo 11 shake, slow → fast
		160–169 Gobo 12 shake, slow → fast
		170–179 Gobo 13 shake, slow → fast
		180–189 Gobo 14 shake, slow → fast
		190–221 Gobo wheel run, slow → fast
		222–223 Stop
		224–255 Gobo wheel run counter-clockwise, slow → fast
10	Rainbow / diffusion effect	0–127 Rainbow & diffusion out
		128–192 Diffusion in
		193–255 Rainbow effect plate in
11	Prism (lens)	0–127 Prism out
11	Prism (lens)	128–255 Prism in
12	Prism rotation	0–127 Fixed position, 0–400°
		128–190 Counter-clockwise, fast → slow
		191–192 Stop
		193–255 Clockwise, slow → fast
13	Focus	0 – 255, linear
14	Reset	0–199 No function
		200–205 Full reset
		206–239 No function
		240–255 No function

5.1Color Wheel — Channel 08

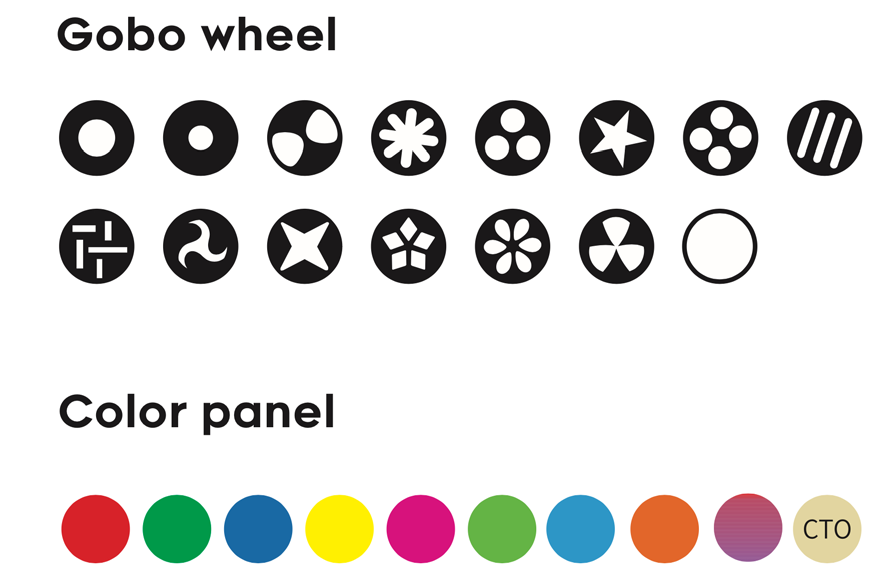

Colour and gobo overview from the product catalogue

CH 08	Color
0–7	White (open)
8–13	Color 1 — Red
14–19	Color 2 — Green
20–25	Color 3 — Blue
26–31	Color 4 — Yellow
32–37	Color 5 — Magenta
38–43	Color 6 — Light green
44–49	Color 7 — Cyan
50–55	Color 8 — Orange
56–61	Color 9 — Dusty pink
62–67	Color 10 — CTO (colour temperature correction)

Split-color mix ranges (68–127) and wheel run (128–255) see chapter 05, page 8.

5.2Gobo Wheel — Channel 09 (14 fixed patterns + white)

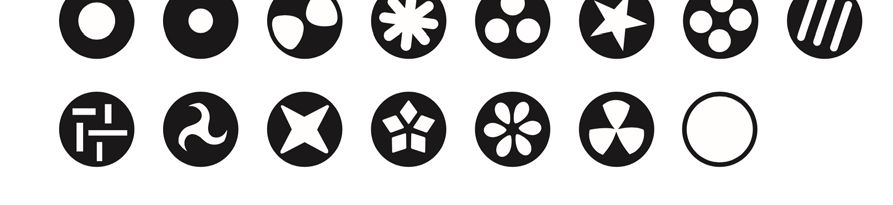

LV-200 gobo wheel — 14 fixed patterns + white (source: Lexvision catalogue)

CH 09	Pattern
0–7	White (open)
8–10	Gobo 1
11–13	Gobo 2
14–16	Gobo 3
17–19	Gobo 4
20–22	Gobo 5
23–25	Gobo 6
26–28	Gobo 7
29–31	Gobo 8
32–34	Gobo 9
35–37	Gobo 10
38–40	Gobo 11
41–43	Gobo 12
44–46	Gobo 13
47–49	Gobo 14

Per-gobo shake effects (50–189) and wheel run (190–255) see chapter 05, page 9.

Chapter 06

06Maintenance & Troubleshooting

Problem	Possible cause / solution
Unit does not power on	Check fuse · check mains socket/cable · check mode (sound-active with no signal)
Erratic or missing control	Power-cycle · run reset menu · restore factory settings
Incorrect settings	Restore factory settings via "Factory" menu

Clean the optics regularly with compressed air/vacuum; remove residue with distilled water or isopropanol on a lint-free cloth. Clean fans and vents regularly. Damage from excessive dust, smoke, or improper use is not covered by warranty.

The signed EU Declaration of Conformity for this product is available upon request from Lexvision GmbH, Waldweg 26, 54636 Sefferweich, Germany.

Appendix

—CE Compliance Notice

The manufacturer declares under its sole responsibility that the LV-200 Beam complies with the relevant EU harmonization legislation.

EU Declaration of Conformity

A signed EU Declaration of Conformity exists for this product. It is not part of this manual and can be requested from us at any time — by email to verkauf@lexvision.de or by phone on +49 (0) 651 14567727, stating the product designation.
